Water Well Screen

SLOT offer high-quality large-diameter water well screens, constructed with smooth wedge wire and robust support rods welded together, using corrosion-resistant metal materials to ensure durability and longevity. Precise specifications ensure that our water well screens function effectively in underground aquifers, preventing clogging, minimizing extraction resistance and energy consumption, and efficiently lifting fluids from lower layers.

Product Description

The Sand control Johnson wedge wire oil water well screen pipe has a wide range of wire and rod shapes make it possible to achieve the optimum balance of strength, open area, abrasion resistance and dewatering/separation efficiency. The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions , equire these variations in a screen’s construction.

Product Specifications

Materials: SS 304, SS 304L, SS 316, SS 316L, SS 321, Duplex, Hastelloy, etc.
Length：up to 6 m
Slot Size:0.1-3.0 mm
Outer Diameter：60mm-812mm
Profile Wire (Width × Height): 28-SLT, 34-SLT,42-SLT, 50-SLT,
Support Rod： Triangle Wire (Width × Height): SLT-22,SLT-25, SLT-35,SLT-D45 Round (mm): Φ2.5 – Φ5 mm

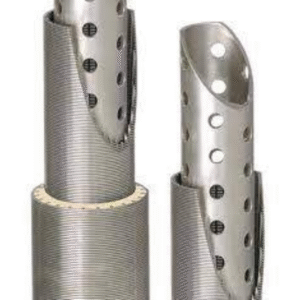

Construction: perforated base pipe, wedge wire screen, gravel pack (optional combination)
Comparable with Johnson / Apollo
