Pressure Arc Screen

Product Description

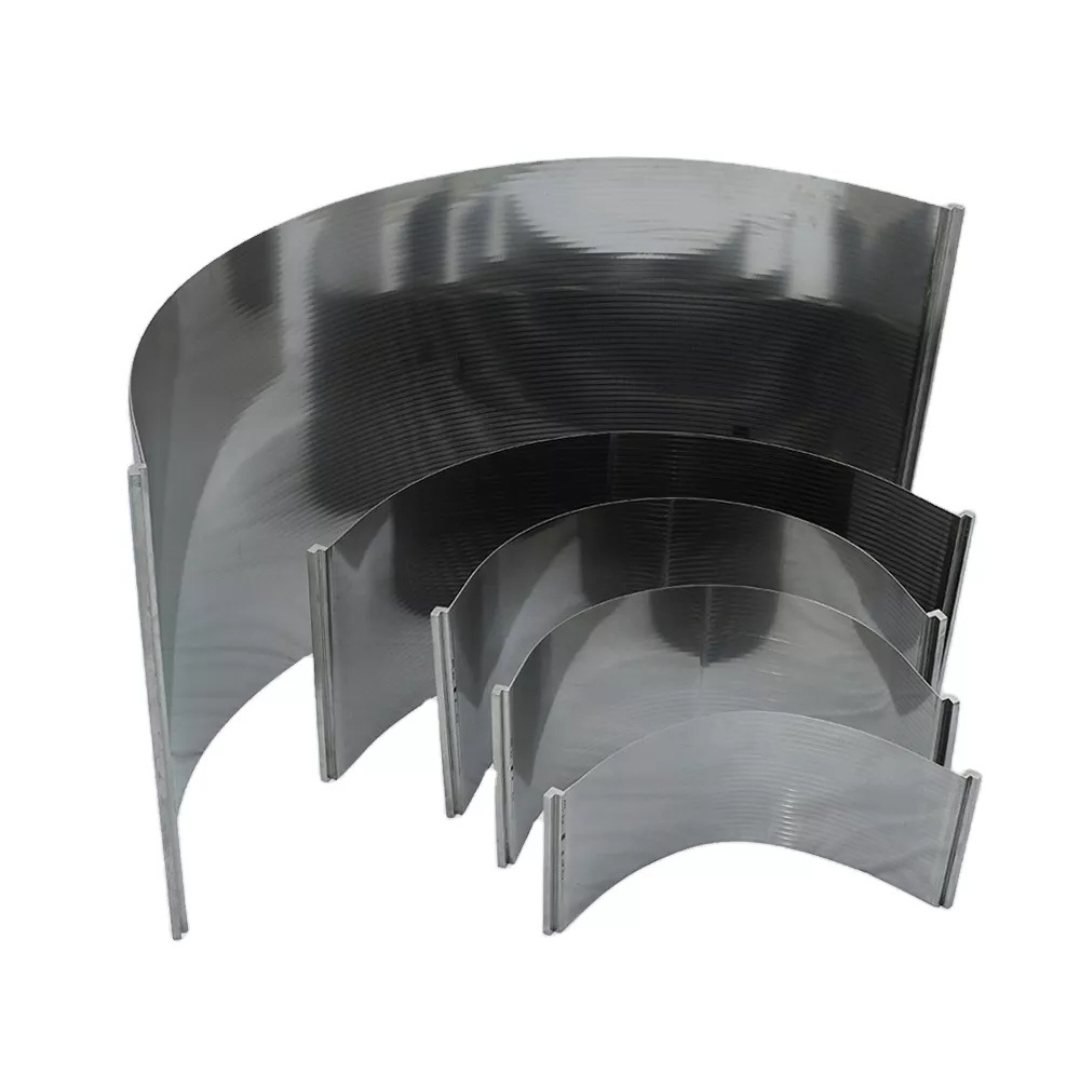

Pressure arc screen, also known as the pressure arc sieve bend screen, DSM Sieve Bend Screen, is an advanced screening equipment with a wide range of uses, it applied in starch processing for multi-stage counter-current rinse. In starch production process, it is used to separate starch from germ and fiber, and is an important process in starch production. The pressure arc screen is a static and efficient screening equipment. It separates and grades wet materials by pressure. Its screen surface is processed by special processing methods and is highly polished. The screen surface is smooth and even. The screen wire has a sharp edge and extremely high wear resistance. When the starch milk with a certain pressure flows quickly through the screen surface, there is no fluctuation or splashing.

Product Specifications

Screen Arc Angle: 120°
Material Standard: ASTM 316L
Slot Size: 50 μm, 75 μm, 100 μm, 120 μm, 150 μm, 200 μm,or customized
Surface wedge wires: 10s, or customized.
Support rods: SLT-25, or customized.
Screen width: 585 mm, 710 mm,730mm, 825 mm or customized.
Screen Arc Length: 1595 mm
Screen Arc Radius: 762 mm

Product Advantages

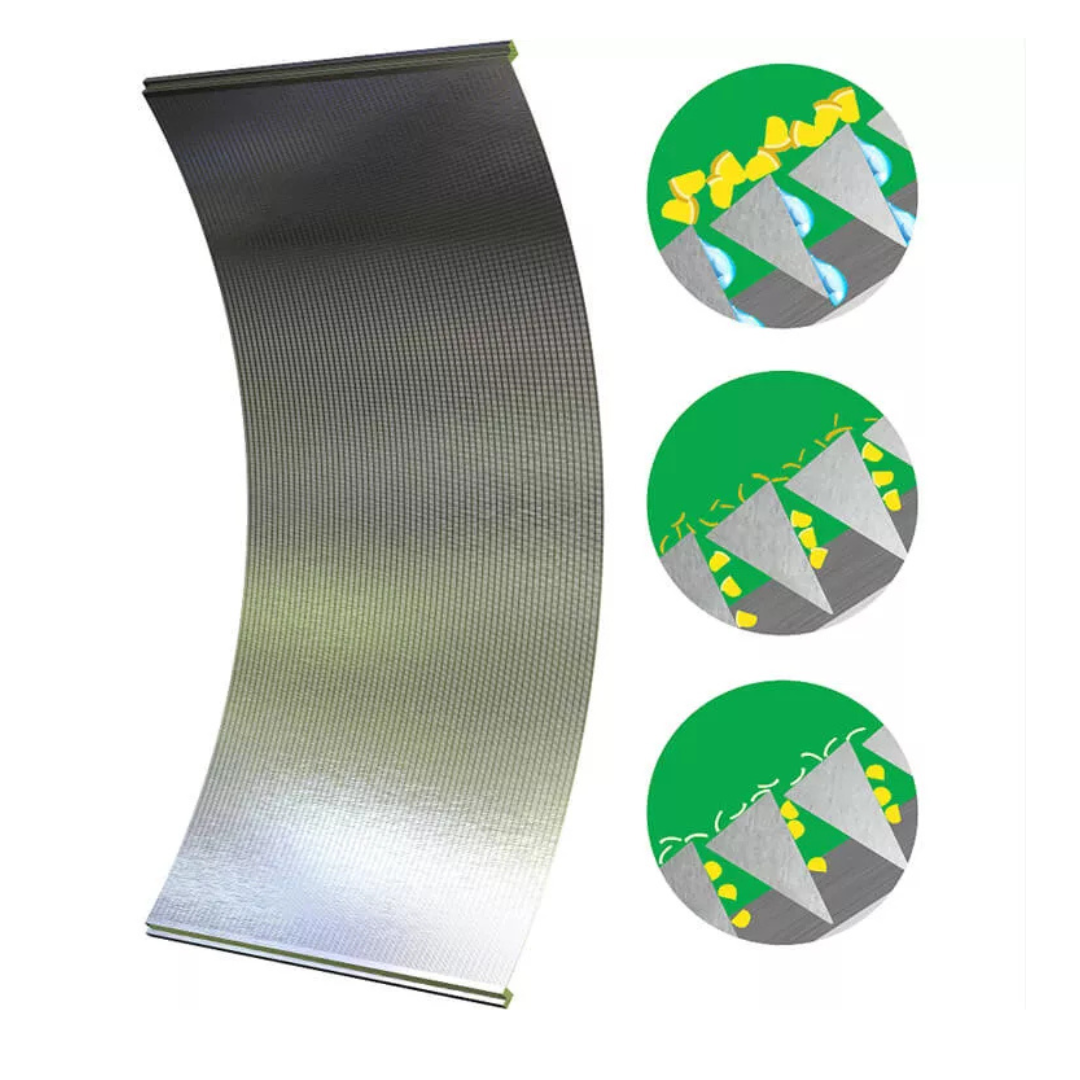

Non-Clogging Design – The sharp-edged wedge wire structure prevents material blockage and ensures continuous operation.
Easy Cleaning and Maintenance – Smooth, polished surface allows quick cleaning and minimizes downtime.
High Filtration Accuracy – Precisely engineered slot openings provide accurate separation of starch, fiber, and germ.
Large Open Area and High Capacity – Optimized screen design enables high throughput and efficient material flow.
Superior Strength and Durability – Robust stainless steel construction ensures long service life under high-pressure conditions.
Stable and Efficient Performance – Delivers consistent screening results without splashing or pressure fluctuation during operation.

Applications

Corn Starch-Fiber Separation – Efficiently separates starch from fiber during corn starch production.
Corn Fiber Washing – Ensures thorough cleaning and recovery of valuable starch content.
Corn Germ Washing – Removes impurities and enhances purity in the corn germ separation process.
Cassava Starch Processing – Ideal for separating and refining starch slurry in cassava production lines.
Potato Starch Processing – Used for dewatering and purification in potato starch manufacturing.
Wheat Starch Processing – Provides precise separation of gluten and starch for high-quality wheat starch output.
